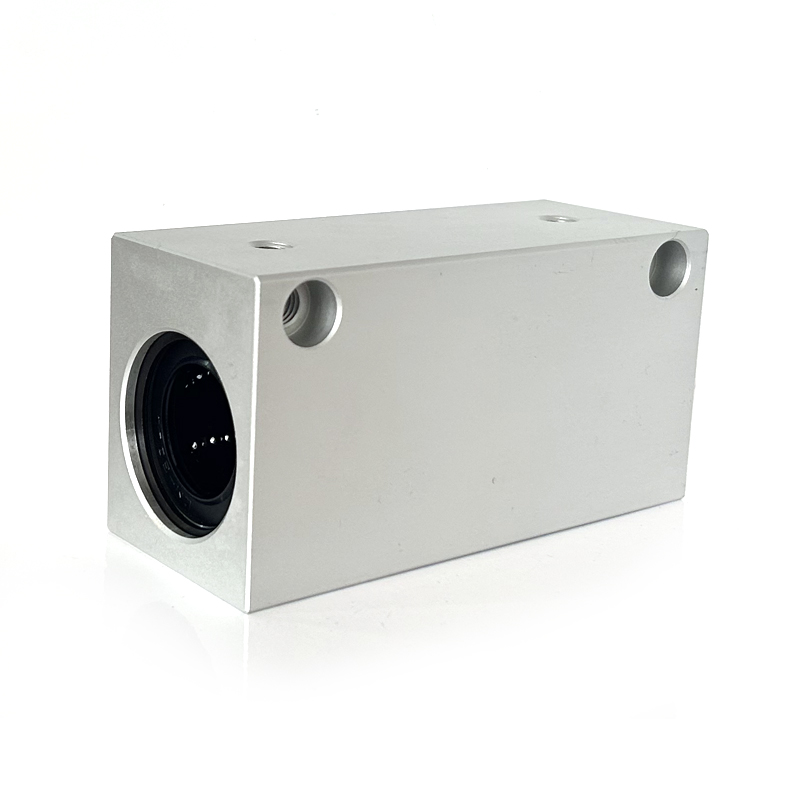

AK10LUU

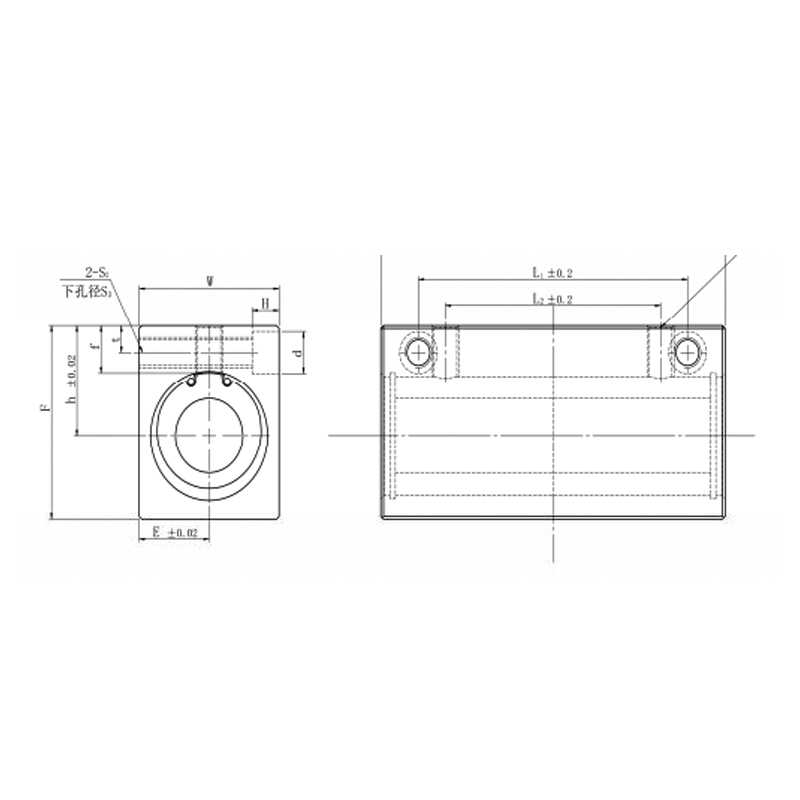

Product Parameters
| Nominal model | AK10LUU |
|---|---|
| mm | 10 |
| Tolerance um | 0-9 |
| h | 19 |
| E | 13 |
| W | 26 |
| F | 32 |
| L | 68 |
| L2 | 36 |
| S1 | M6 |
| f | 9.5 |
| L1 | 50 |
| t | 6 |
| S2 | M5 |
| S3 | 4.5 |
| d | 8 |
| H | 6 |
| Dynamic load CN | 744 |
| Static load CoN | 1098 |
| Mo N·m | 7.24 |
| Quality g | 186 |
