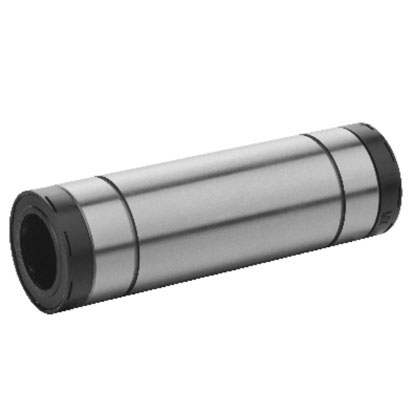

LM16LUU-MX

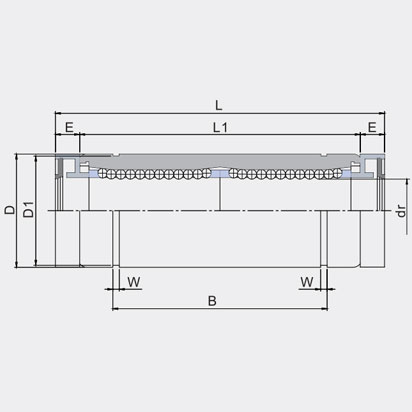

Product Parameters
| Nominal Shaft Diameter mm | 16 |
|---|---|
| Standard LM…lUU-MX | LM16LUU-MX |
| Ball circuit | 5 |
| drmm | 16 |
| Toleranceμm | 0/-10 |
| D mm | 28 |
| Tolerance μm | 0/-16 |
| L mm | 82 |
| L1 mm | 70 |
| Tolerance μm | 0/-300 |
| E mm | 6 |
| B mm | 53 |
| Tolerance μm | 0/-300 |
| W mm | 1.6 |
| D1 mm | 27 |
| Eccentricity μm | 15 |
| Dynamic C N | 1230 |
| Static Co N | 2350 |
| Weight(g) | 152 |
