Product Parameters
| Inch |
1-1/4 |
| mm |
31.75 |

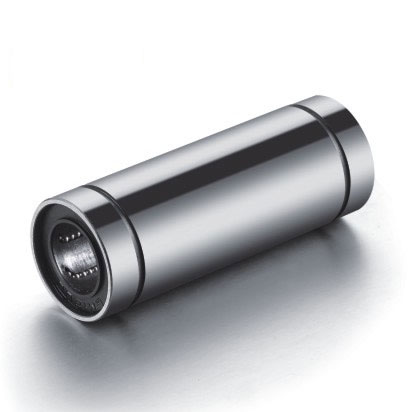

| Extended type |
LMB20LUU |
| Weight (g) |
820 |

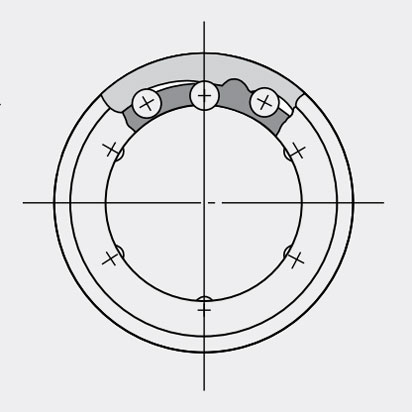

| Number of steel ball rows |
6 |

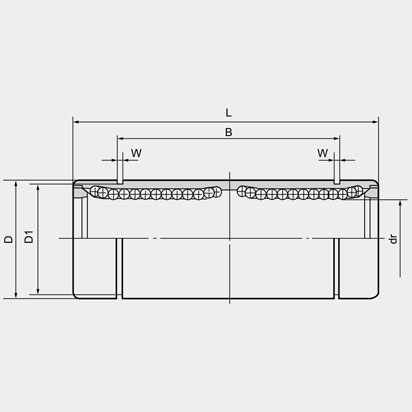

| dr Inch |
1.25 |
| Dr tolerance Inch |
0/-.00060 |
| dr mm |
31.75 |
| Dr tolerance μ M |
0/-15 |
| D Inch |
2 |
| D mm |
50.8 |
| D tolerance Inch |
0/-.00090 |
| D tolerance μ M |
0/-22 |
| L Inch |
5 |
| L tolerance Inch |
0/-.016 |
| L mm |
127 |
| L tolerance μ M |
0/-400 |
| B Inch |
4.0094 |
| B tolerance Inch |
0/-.016 |
| B mm |
101.839 |
| B tolerance μ M |
0/-400 |
| W Inch |
0.0679 |
| W mm |
1.727 |
| D 1 Inch |
1.8859 |
| D1 mm |
47.904 |
| Eccentricity μ M |
25 |
| Eccentric Inch |
0.001 |
| Dynamic load C N |
2500 |
| Static load Co N |
5490 |
