Product Parameters
| Inch |
1/4 |
| mm |
6.35 |

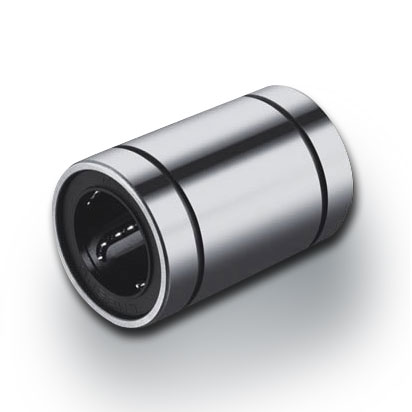

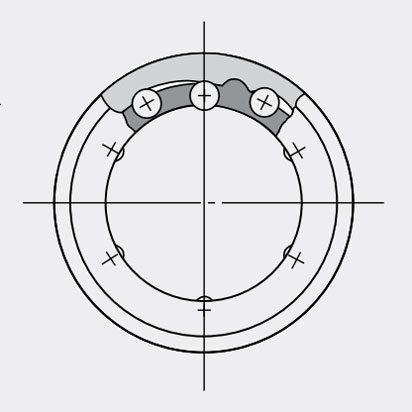

| Standard type |
LMB4 |
| Number of steel ball rows |
4 |
| Weight (g) |
8 |

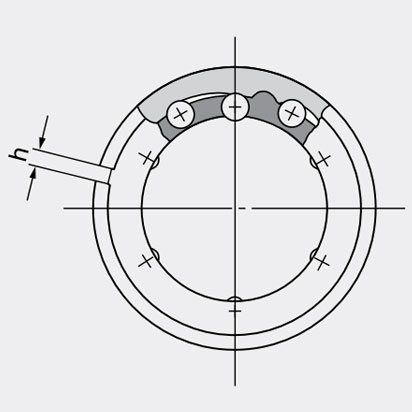

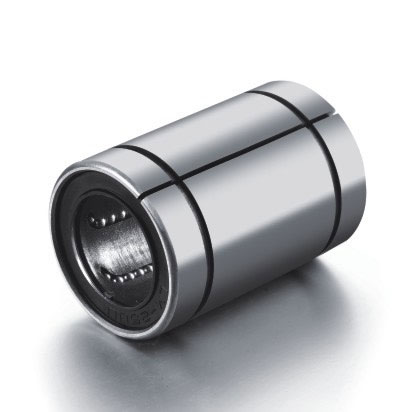

| Gap adjustment type |
LMB4-AJ |
| Number of steel ball rows |
4 |
| Weight (g) |
7.5 |

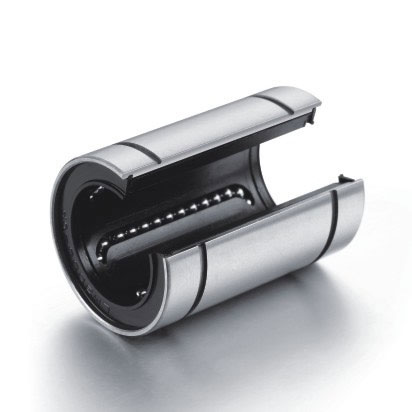

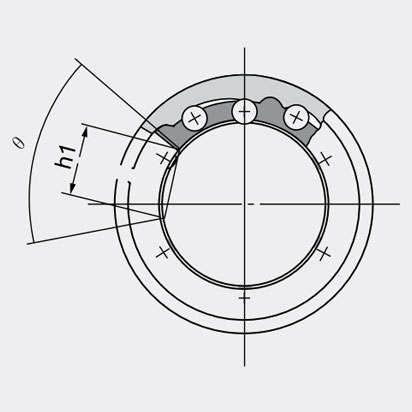

| Open type |
- |
| Number of steel ball rows |
- |
| Weight (g) |
- |

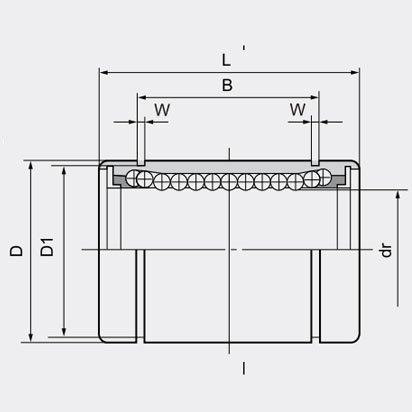

| dr Inch |
0.25 |
| dr mm |
6.35 |
| Tolerance precision inch |
0/-.00025 |
| Precision tolerance μ m |
0/-6 |
| Tolerance common inch |
0/-.00040 |
| Common tolerance μ m |
0/-9 |
| D Inch |
0.5 |
| D tolerance inch |
0/-.00045 |
| D mm |
12.7 |
| D tolerance μ m |
0/-11 |
| L Inch |
0.75 |
| L tolerance inch |
0/-.008 |
| L mm |
19.05 |
| L tolerance μ m |
0/-200 |
| B Inch |
0.511 |
| B tolerance inch |
0/-.008 |
| B mm |
12.98 |
| B tolerance μ m |
0/-200 |
| W Inch/mm |
.0390/0.992 |
| D 1 Inch/mm |
.4687/11.906 |
| h Inch/mm |
.04/1 |
| h 1 Inch/mm |
- |
| θ |
- |
| Precision inch/ μ m |
.0003/8 |
| Ordinary inch/ μ m |
.0005/12 |
| Maximum radial clearance inch/ μ m |
-.0001/-3 |
| Dynamic load C n |
206 |
| Static load co n |
265 |
