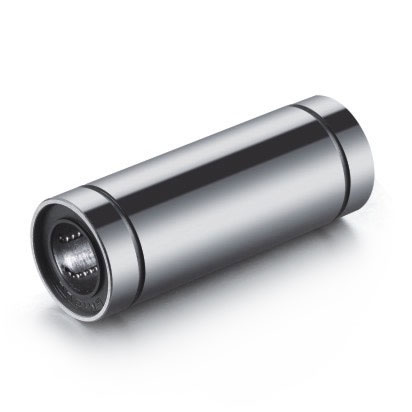

LME16LGA
Product Parameters
| Nominal shaft diameter mm | 16 |
|---|---|
| LME…LGZ | LME16LGA |

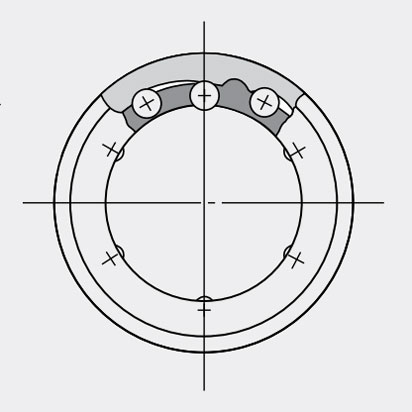

| Ball circuit | 5 |

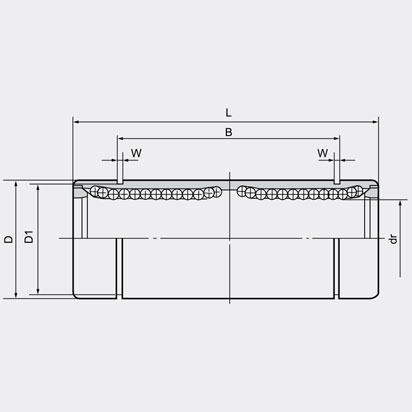

| dr mm | 16 |
| dr Toleranceμm | +11/-1 |
| D mm | 26 |
| D Toleranceμm | 0/-11 |
| L mm | 68 |
| L Toleranceμm | 0/-300 |
| B mm | 49.8 |
| B Toleranceμm | 0/-300 |
| W mm | 1.3 |
| D1 mm | 24.9 |
| Eccentricity μm | 15 |
| Dyanmic C N | 921 |
| Static Co N | 1780 |
| Weight (g) | 148 |
