LME3
Product Parameters
| Nominal shaft diameter mm | 3 |
|---|---|
| Standard type | LME3 |
| Number of steel ball rows | 4 |
| Weight (g) | 1.35 |
| Gap adjustment type | - |
| Number of steel ball rows | - |
| Weight (g) | - |

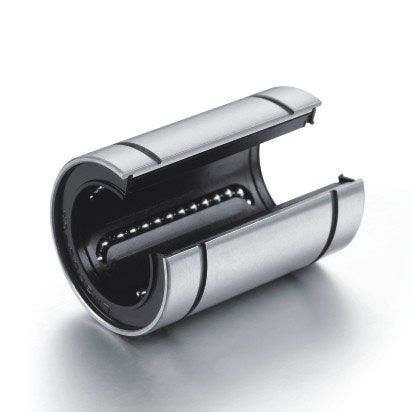

| Open end type | - |
| Number of steel ball rows | - |
| Weight (g) | - |

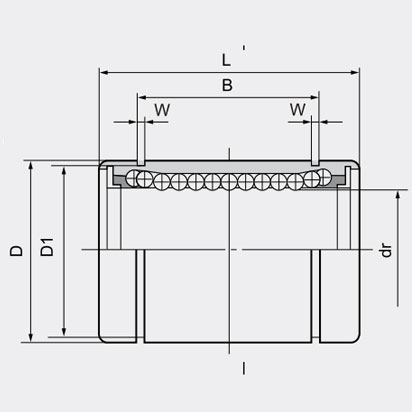

| dr mm | 3 |
| Tolerance μ M Normal | 8/0 |
| D mm | 7 |
| D tolerance μ M | 0/-8 |
| L mm | 10 |
| L tolerance μ M | 0/-120 |
| B(mm) | - |
| B tolerance μ M | - |
| w mm | - |
| D1mm | - |

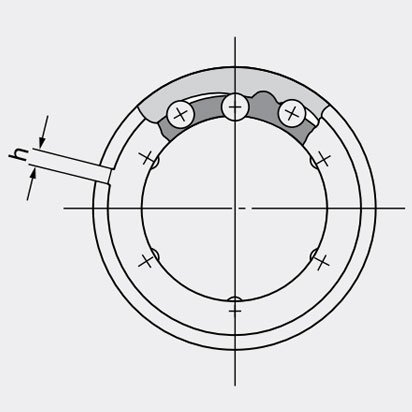

| h | - |

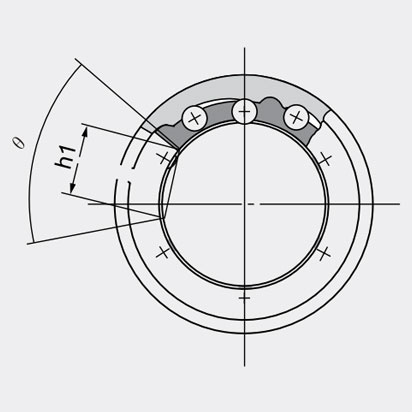

| h1mm | - |
| θ | - |
| Eccentricity μ M | 10 |
| Maximum radial clearance μ M | -3 |
| Dynamic load C N | 69 |
| Static load Co N | 105 |
