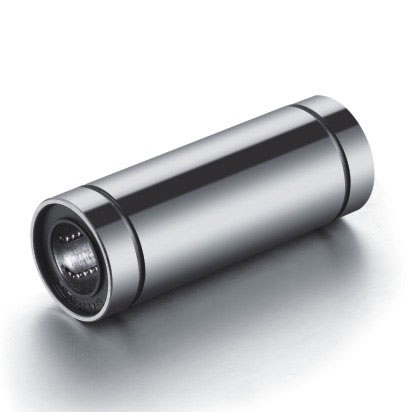

LME40LUU

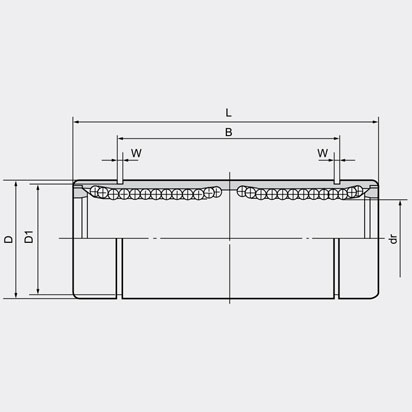

Product Parameters
| Nominal shaft diameter mm | 40 |
|---|---|
| Standard type | LME40LUU |

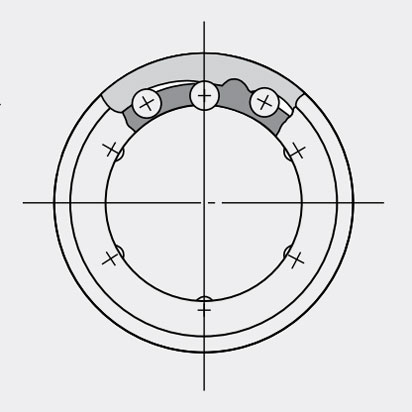

| Number of steel ball rows | 6 |
| dr mm | 40 |
| Dr tolerance μ m | +16/-4 |
| D mm | 62 |
| D tolerance μ m | 0/-15 |
| L mm | 151 |
| L tolerance μ m | 0/-400 |
| B mm | 121.2 |
| B tolerance μ m | 0/-400 |
| W mm | 2.15 |
| D1 | 59 |
| Eccentric μ m | 20 |
| Dynamic load C n | 3430 |
| Static load co n | 8040 |
| Weight (g) | 1400 |
