LMEF16GA
Product Parameters
| Nominal diameter mm | 16 |
|---|---|

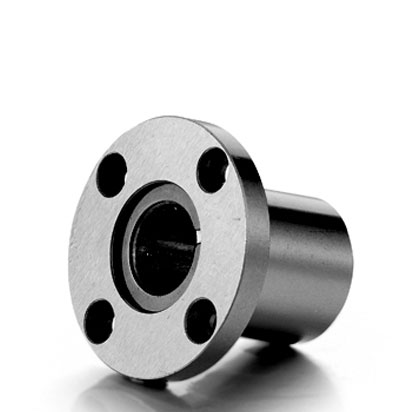

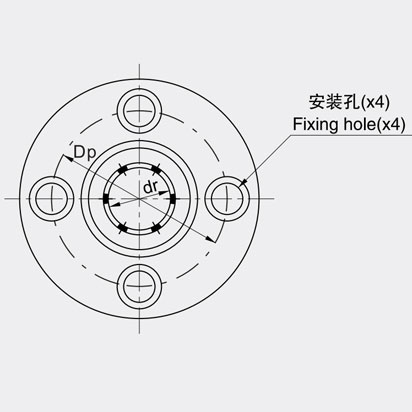

| Circular flange | LMEF16GA |
| Weight (g) | 119.5 |

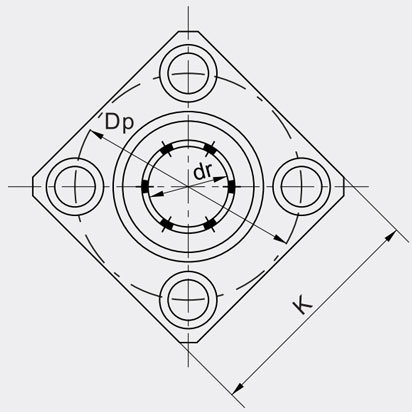

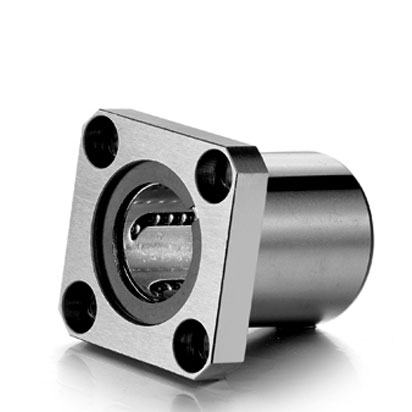

| Square flange | LMEK16GA |
| Weight (g) | 106.5 |
| dr mm | 16 |
| Dr tolerance μ M | 9/-1 |

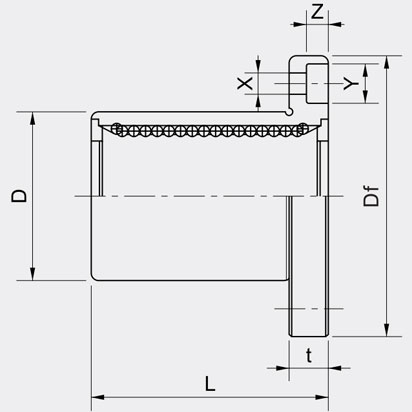

| D mm | 26 |
| Dr tolerance μ M | 0/-9 |
| L mm | 36 |
| L tolerance mm | 0/-200 |
| Df mm | 46 |
| K mm | 35 |
| t mm | 6 |
| Dp mm | 36 |
| X mm | 4.5 |
| Y mm | 7.5 |
| Z mm | 4.1 |
| Eccentricity μ M | 12 |
| Verticality μ M | 12 |
| Dynamic load C N | 578 |
| Static load Co N | 892 |
