LMEF8LUU
Product Parameters

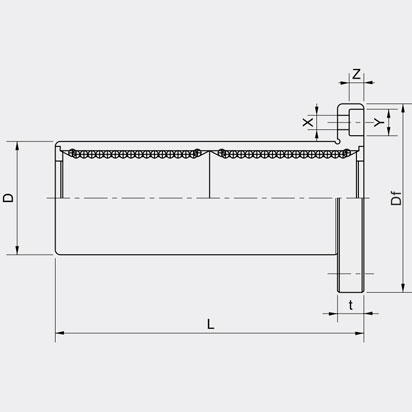

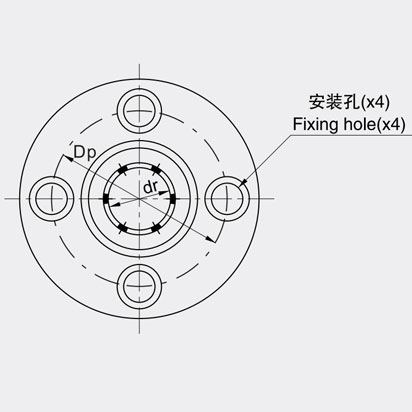

| Nominal shaft diameter mm | 8 |
|---|---|

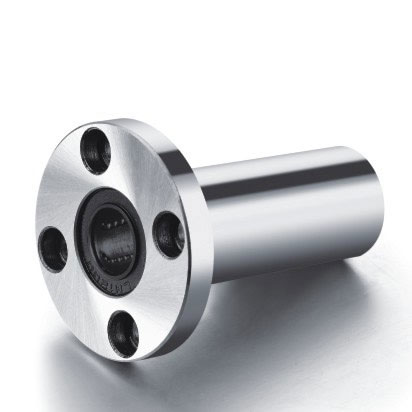

| Extended round flange | LMEF8LUU |
| Weight (g) | 59 |

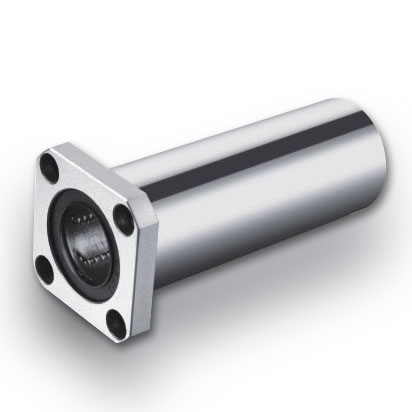

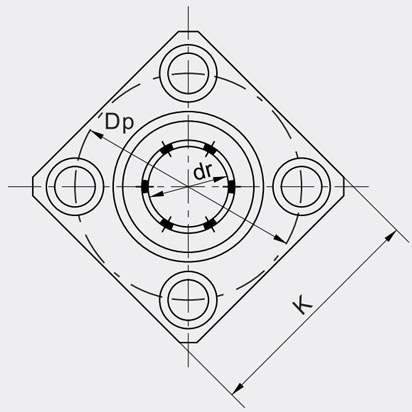

| Add rectangular flange | LMEK8LUU |
| Weight (g) | 51 |
| dr mm | 8 |
| Dr tolerance μ M | 9/-1 |
| D mm | 16 |
| D tolerance μ M | 0/-9 |
| L mm | 46 |
| L tolerance μ M | ±300 |
| Df mm | 32 |
| k mm | 25 |
| t mm | 5 |
| Dp mm | 24 |
| X mm | 3.5 |
| Y mm | 6 |
| Z mm | 3.1 |
| Eccentricity μ M | 15 |
| Verticality μ M | 15 |
| Dynamic load C N | 421 |
| Static load Co N | 804 |
