LMEFK20LGA
Product Parameters
| Nominal shaft diameter mm | 20 |
|---|---|

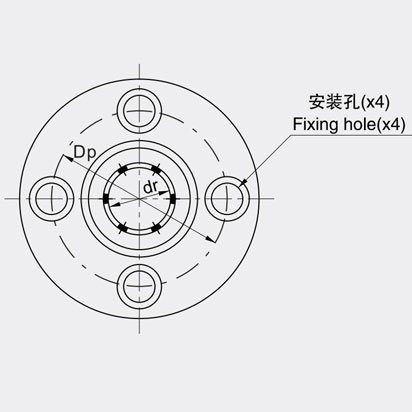

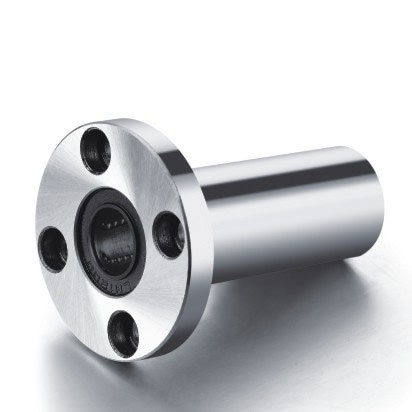

| Extended middle circular flange | LMEFM20LGA |
| Weight (g) | 318.6 |

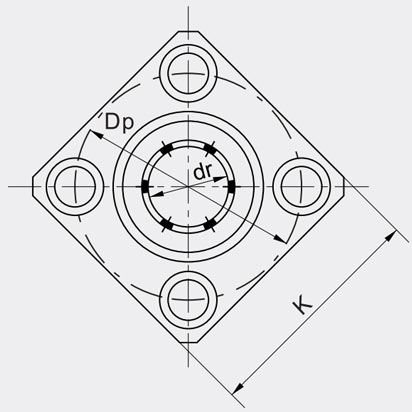

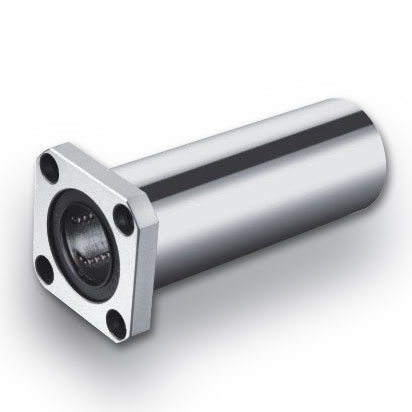

| Lengthened middle method flange | LMEFK20LGA |
| Weight (g) | 283.6 |

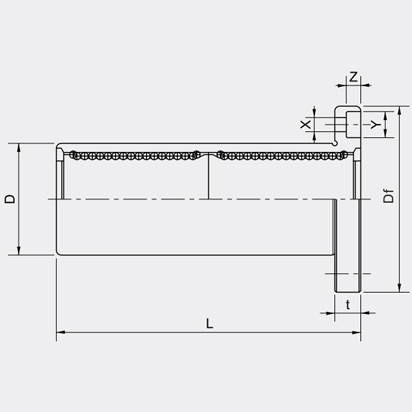

| dr mm | 20 |
| Dr tolerance μ M | 11/-1 |
| D mm | 32 |
| D tolerance μ M | 0/-13 |
| L mm | 80 |
| L tolerance μ M | 0/-300 |
| Flange ℓ mm | 36 |
| Flange Df mm | 54 |
| Flange K mm | 42 |
| Flange t mm | 8 |
| Flange Dp mm | 43 |
| Flange X mm | 5.5 |
| Flange Y mm | 9 |
| Flange Z mm | 5.1 |
| Eccentricity μ M | 17 |
| Verticality μ M | 17 |
| Dynamic load C N | 1370 |
| Static load Co N | 2740 |
