LMFM13LUU

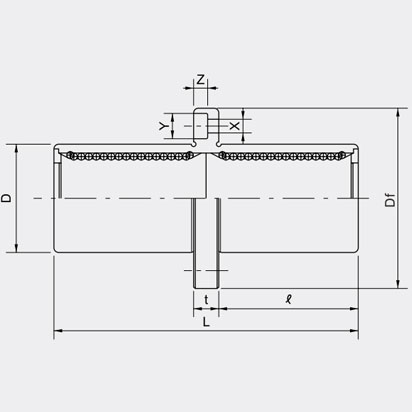

Product Parameters
| Nominal shaft diameter mm | 13 |
|---|---|

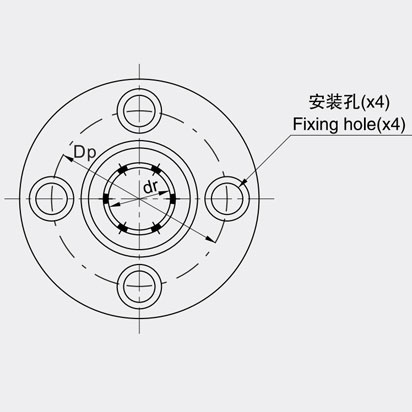

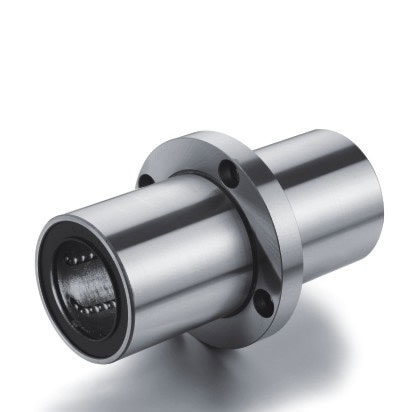

| Extended middle circular flange | LMFM13LUU |
| Weight (g) | 130 |

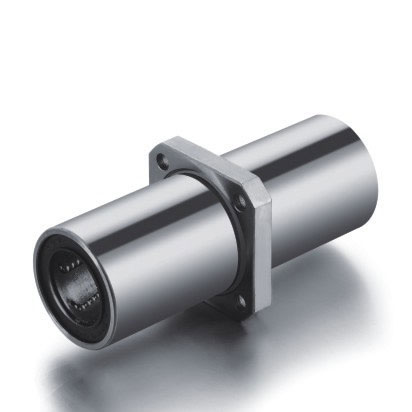

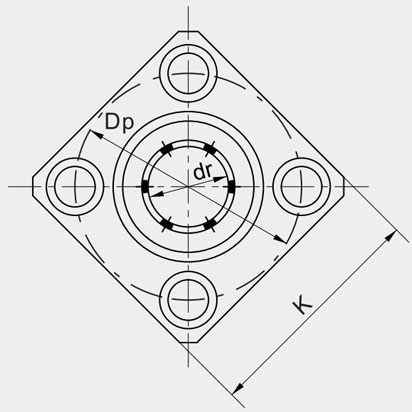

| Lengthened middle method flange | LMKM13LUU |
| Weight (g) | 108 |
| dr mm | 13 |
| Dr tolerance μ M | 0/-10 |
| D mm | 23 |
| D tolerance μ M | 0/-16 |
| L mm | 61 |
| L tolerance μ M | 0/-300 |
| l mm | 27.5 |
| Df mm | 43 |
| k mm | 34 |
| t mm | 6 |
| Dp mm | 33 |
| X mm | 4.5 |
| Y mm | 7.5 |
| Z mm | 4.1 |
| Eccentricity μ M | 15 |
| Verticality μ M | 15 |
| Dynamic load C N | 813 |
| Static load Co N | 1570 |
