LMFP80UU
Product Parameters
| Nominal shaft diameter mm | 80 |
|---|---|

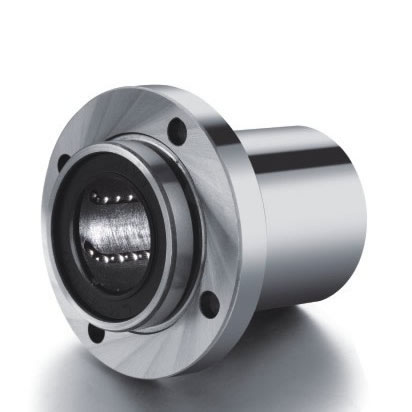

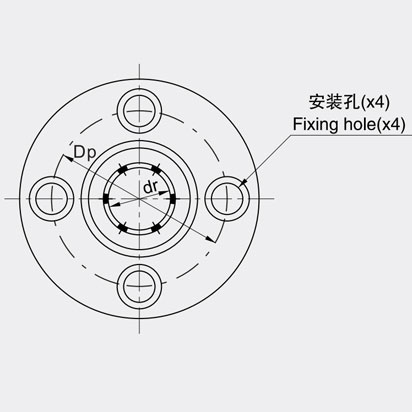

| Guide circular flange | LMFP80UU |
| Weight (g) | 5800 |

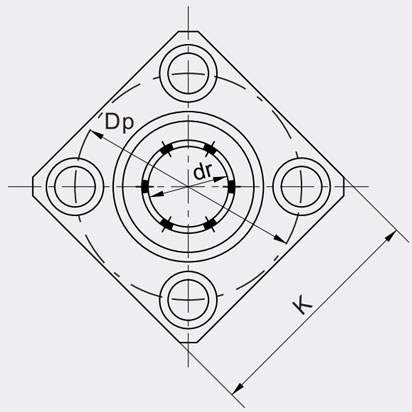

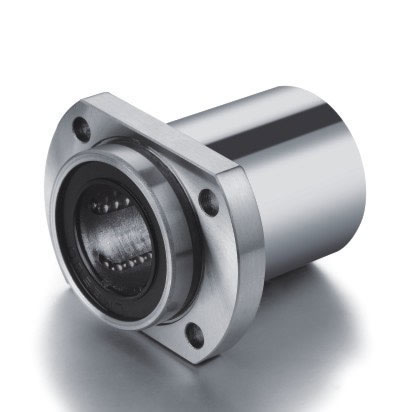

| Guide square flange | LMKP80UU |
| Weight (g) | 5300 |

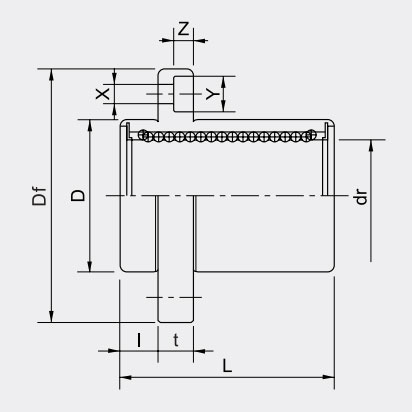

| dr mm | 80 |
| Dr tolerance μ M | 0/-15 |
| D mm | 120 |
| D tolerance μ M | 0/-25 |
| L mm | 140 |
| L tolerance μ M | ±300 |
| l mm | 18 |
| Df mm | 164 |
| k mm | 136 |
| t mm | 18 |
| Dp mm | 142 |
| X mm | 11 |
| Y mm | 17 |
| Z mm | 11.1 |
| Eccentricity μ M | 25 |
| Verticality μ M | 25 |
| Dynamic load C N | 7350 |
| Static load Co N | 16000 |
