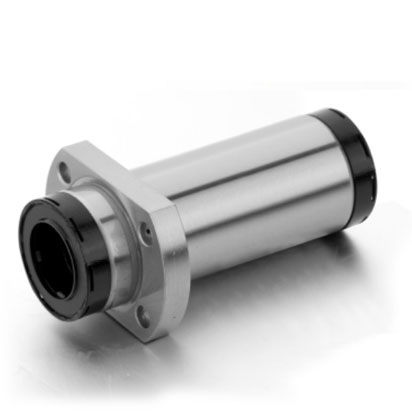

LMHP10LUU-MX
Product Parameters
| Nominal Shaft Diameter mm | 10 |
|---|---|
| LMHP ... LUU-MX | LMHP10LUU-MX |
| Weight(g) | 94 |
| Ball circuit | 4 |
| dr mm | 10 |
| Tolerance μm | 0/-10 |
| D mm | 19 |
| Tolerance μm | 0/-16 |
| L mm | 65 |
| L1 mm | 55 |
| Tolerance μm | ±300 |
| E mm | 5 |
| Imm | 6 |
| Dfmm | 40 |
| Wmm | 25 |
| tmm | 6 |
| Amm | 29 |
| Fmm | - |
| Xmm | 4.5 |
| Ymm | 7.5 |
| Zmm | 4.1 |
| Eccentricity μm | 15 |
| Squareness μm | 15 |
| Dynamic C N | 588 |
| Static Co N | 1100 |
