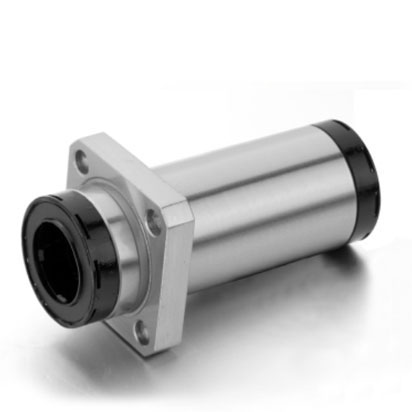

LMKP10LUU-MX
Product Parameters
| Nominal shaft diameter mm | 10 |
|---|---|
| LMFP…LUU-MX | LMFP10LUU-MX |
| Weight(g) | 102 |
| LMKP ... LUU-MX | LMKP10LUU-MX |
| Weight(g) | 82 |
| Ball circuit | 4 |

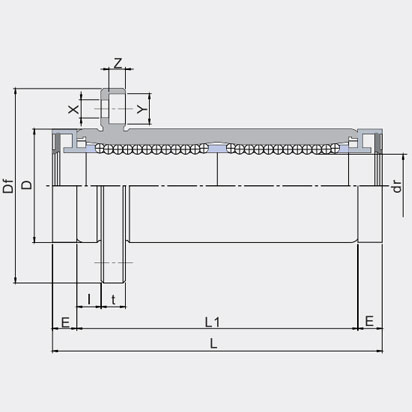

| dr mm | 10 |
| Tolerance μm | 0/-10 |
| D mm | 19 |
| Tolerance μm | 0/-16 |
| L mm | 65 |
| L1 mm | 55 |
| Tolerance μm | ±300 |
| E mm | 5 |
| Imm | 6 |

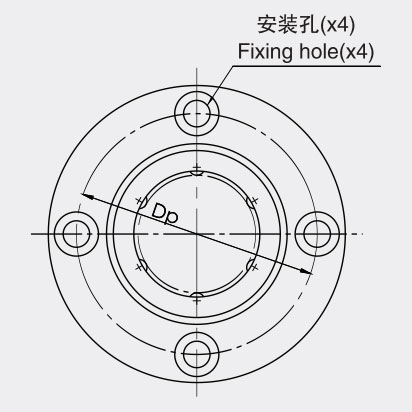

| Dfmm | 40 |

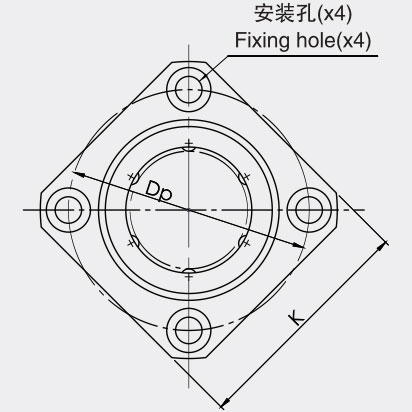

| Kmm | 30 |
| tmm | 6 |
| Dpmm | 29 |
| Xmm | 4.5 |
| Ymm | 7.5 |
| Zmm | 4.1 |
| Eccentricity μm | 15 |
| Squareness μm | 15 |
| Dynamic C N | 588 |
| Static Co N | 1100 |
