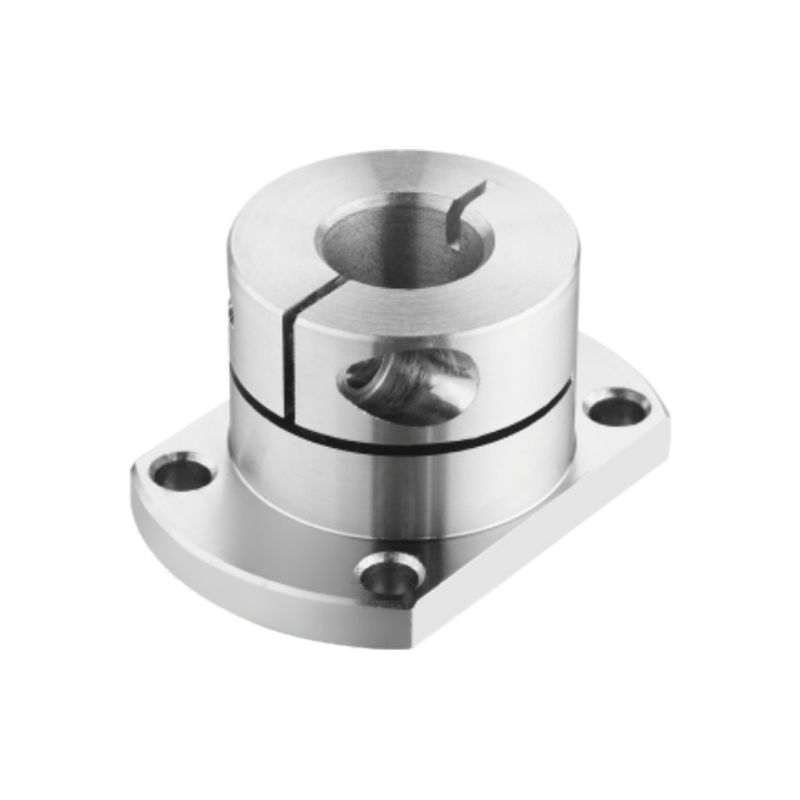

SGBH…12

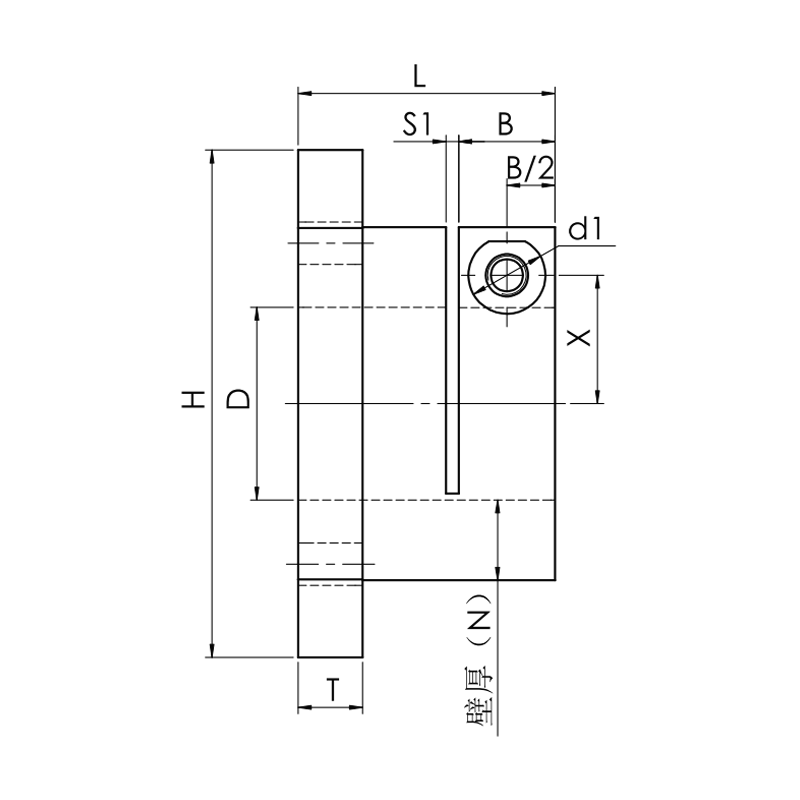

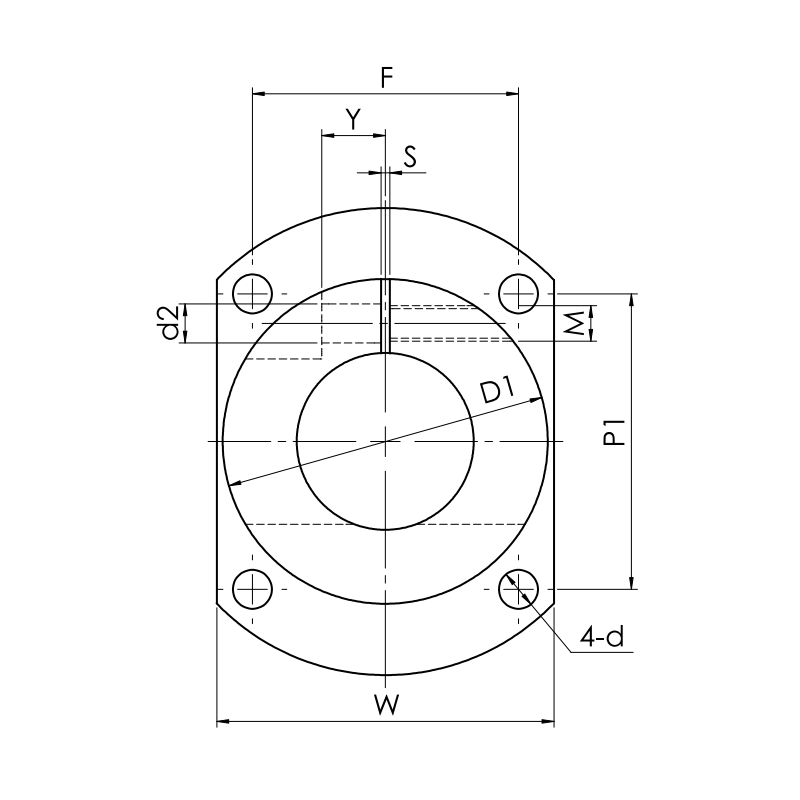

Product Parameters
| code | SGBH…12 |
|---|---|
| D | 12 |
| Tolerance (H7) | +0.018/0 |
| L | 22 |
| D1 | 32 |
| H | 52 |
| T | 6 |
| Fixed wall thickness (N) | 10 |
| B | 10 |
| S1 | 1.5 |
| X | 11 |
| W | 34 |
| P1 | 35 |
| F | 25 |
| S | 1.5 |
| Y | 4 |
| d1 | 9 |
| d2 | 5.6 |
| d | 4.5
5.5 |
| M | M5 |
| Accessory bolt M * length | M5*12 |
