SSLMFP20DD
Product Parameters
| Nominal shaft diameter | 20 |
|---|---|

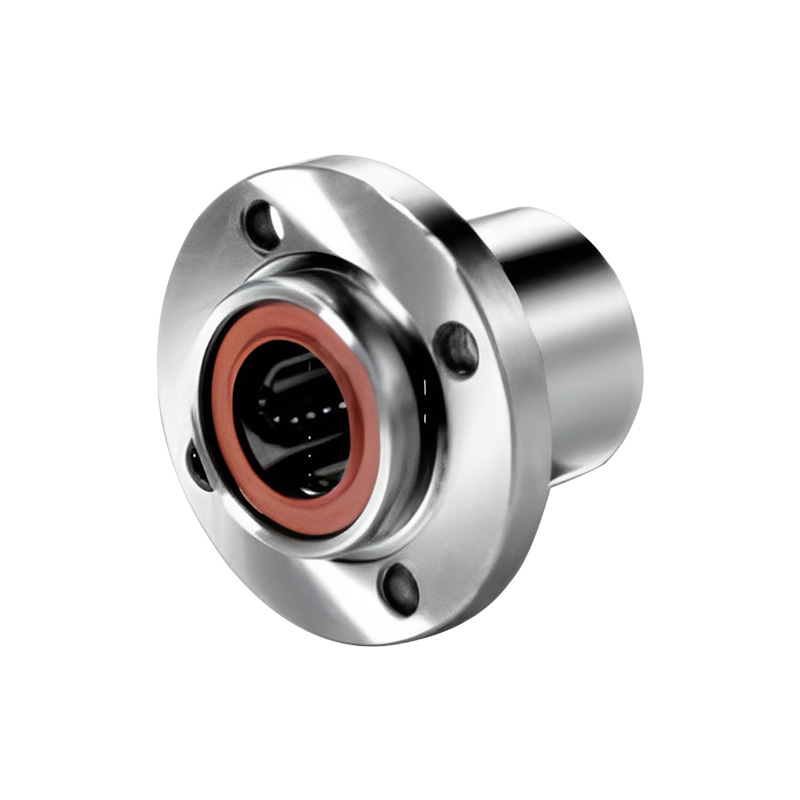

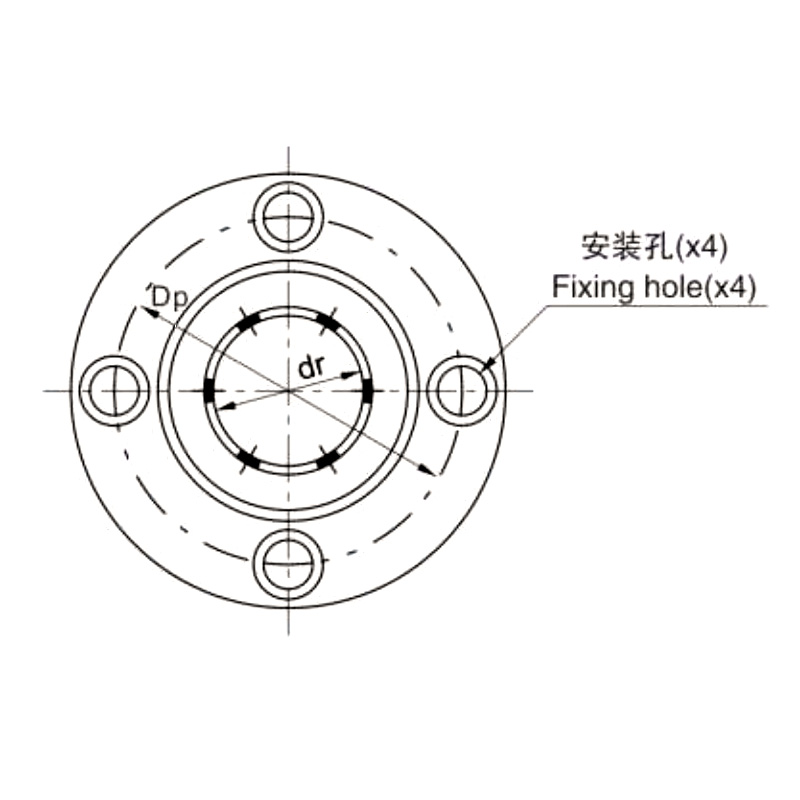

| Guide circular flange | SSLMFP20DD |
| Weight (g) | 162.6 |

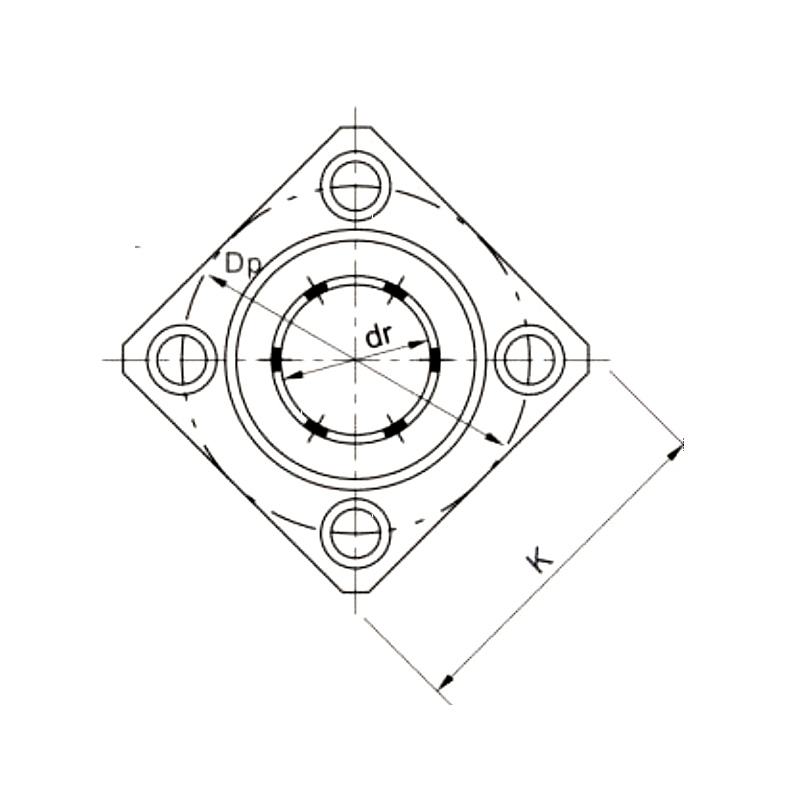

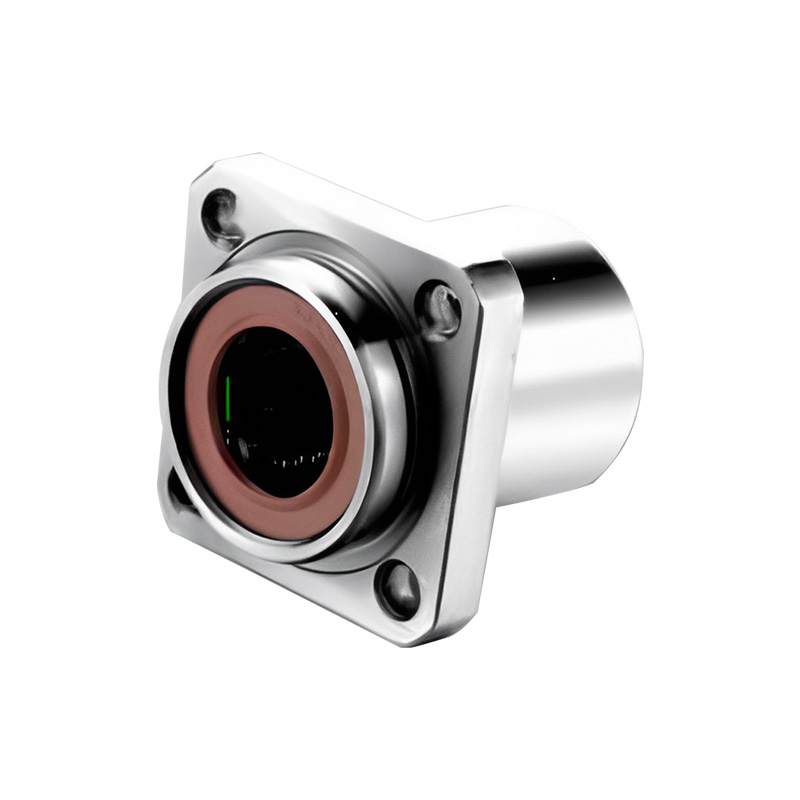

| Guide square flange | SSLMKP20DD |
| Weight (g) | 128.9 |

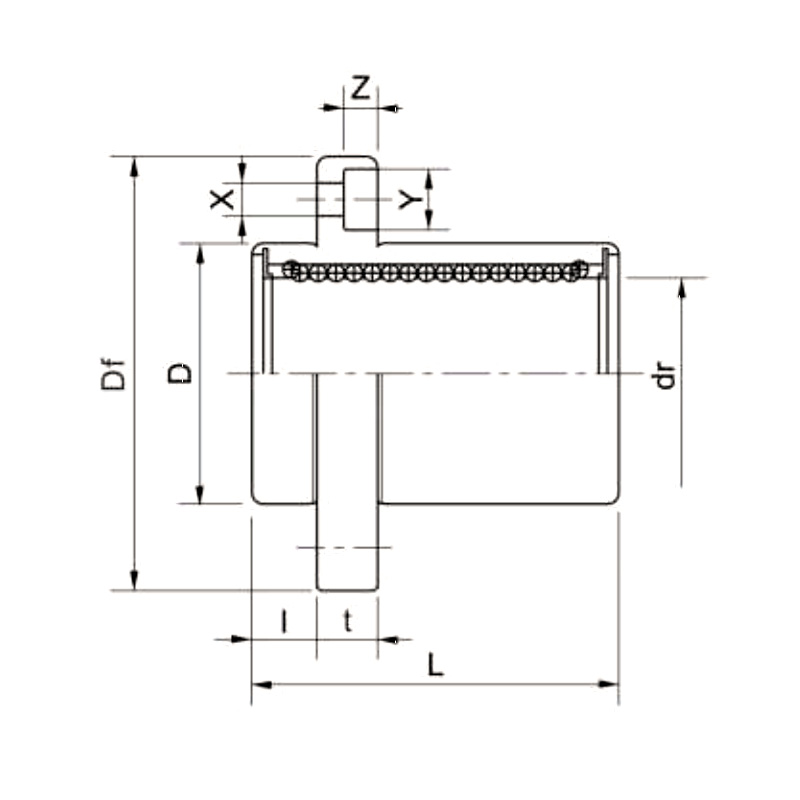

| dr(mm) | 20 |
| tolerance | 0/-10 |
| D(mm) | 32 |
| tolerance | 0/-19 |
| L(mm) | 42 |
| tolerance | ±300 |
| I (mm) | 8 |
| Df(mm) | 54 |
| K(mm) | 42 |
| t(mm) | 8 |
| Dp mm | 43 |
| X(mm) | 5.5 |
| Y(mm) | 9 |
| Z(mm) | 5.1 |
| eccentric | 15 |
| verticality | 15 |
| Dynamic load CN | 882 |
| Static load Co N | 1370 |
