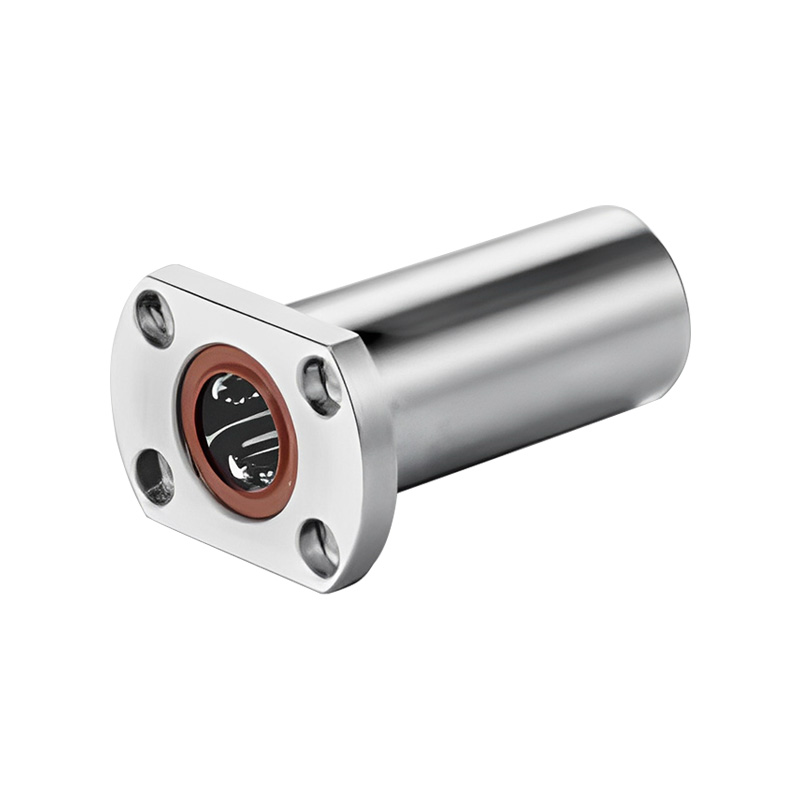

SSLMH10LDD

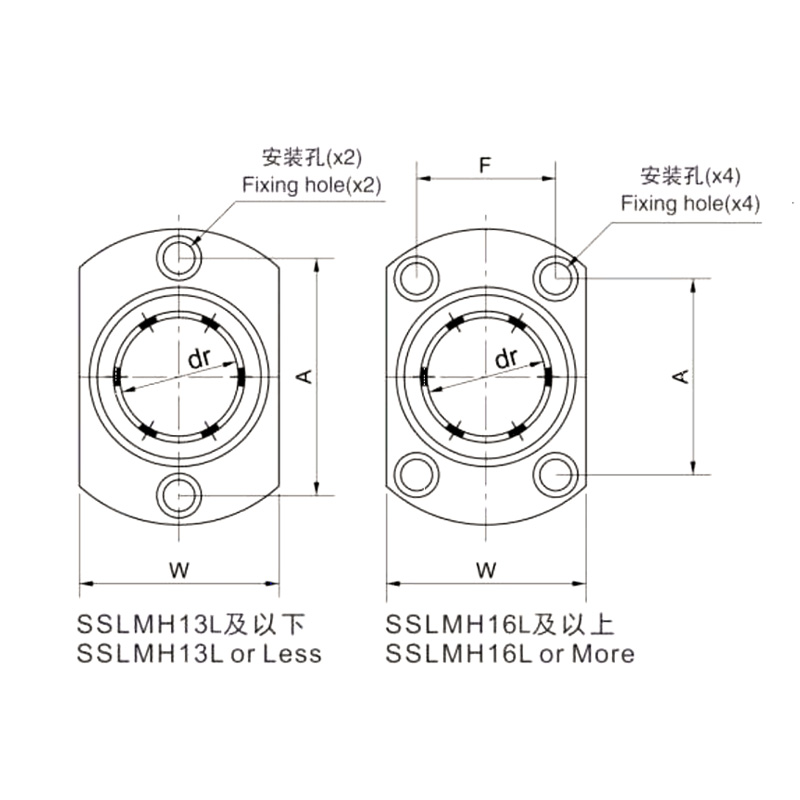

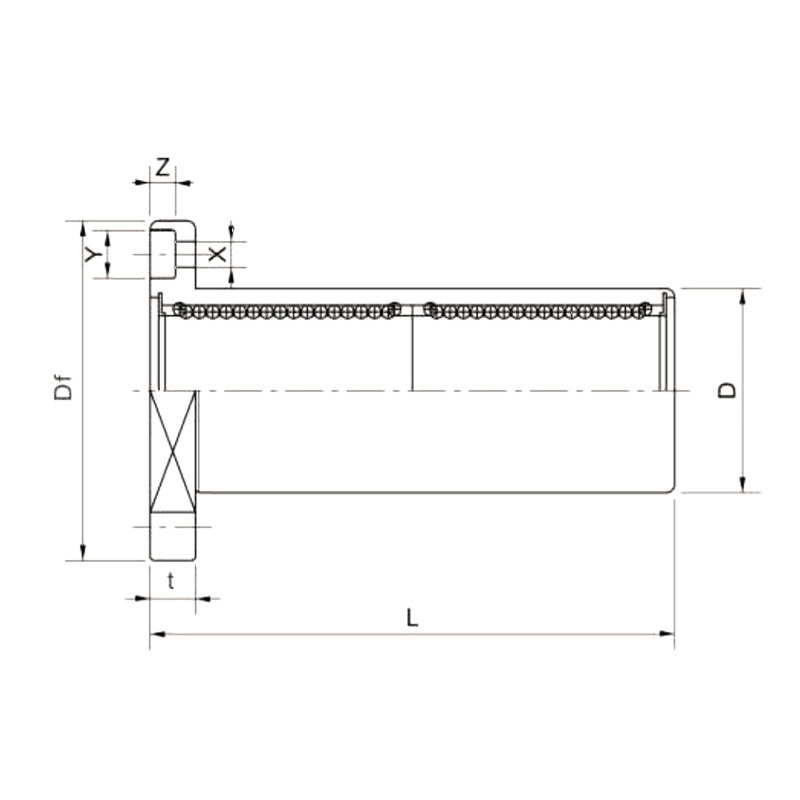

Product Parameters
| Nominal shaft diameter | 10 |
|---|---|
| Extended oval flange | SSLMH10LDD |
| Weight (g) | 74.5 |
| dr(mm) | 10 |
| tolerance | 0 /-10 |
| D(mm) | 19 |
| tolerance | 0/-16 |
| L(mm) | 55 |
| tolerance | ±300 |
| Df (mm) | 40 |
| W (mm) | 25 |
| t (mm) | 6 |
| A (mm) | 29 |
| F (mm) | - |
| X(mm) | 4.5 |
| Y(mm) | 7.5 |
| Z(mm) | 4.1 |
| eccentric | 15 |
| verticality | 15 |
| Dynamic load CN | 588 |
| Static load Co N | 1100 |
