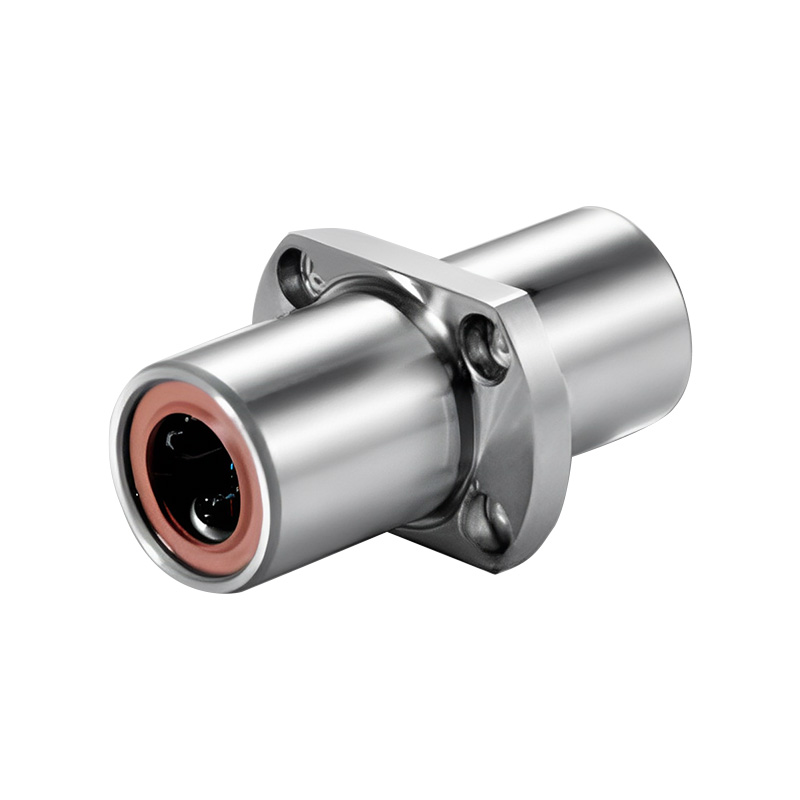

SSLMHM12LDD

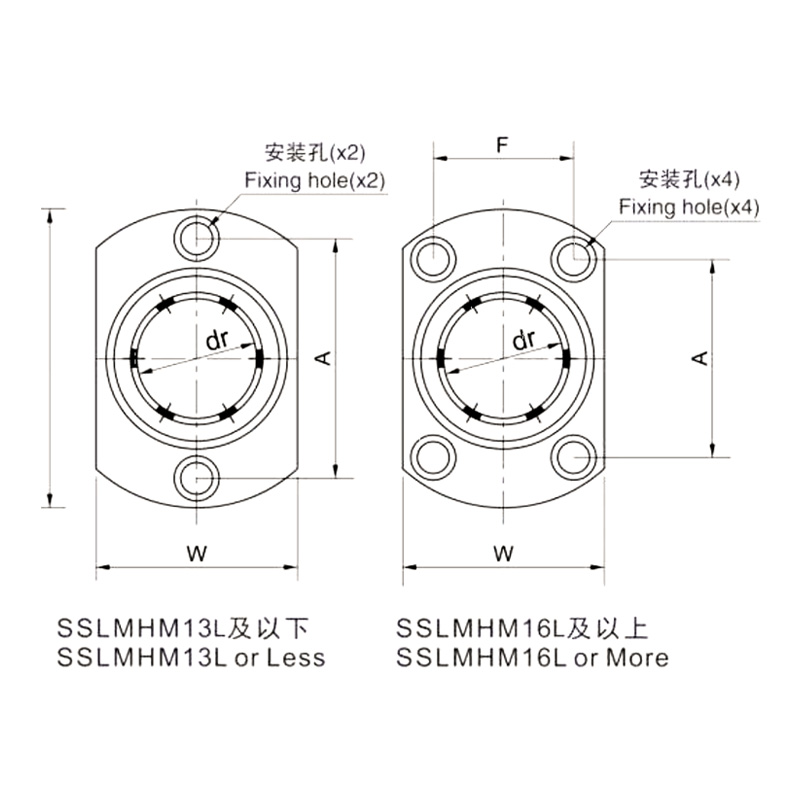

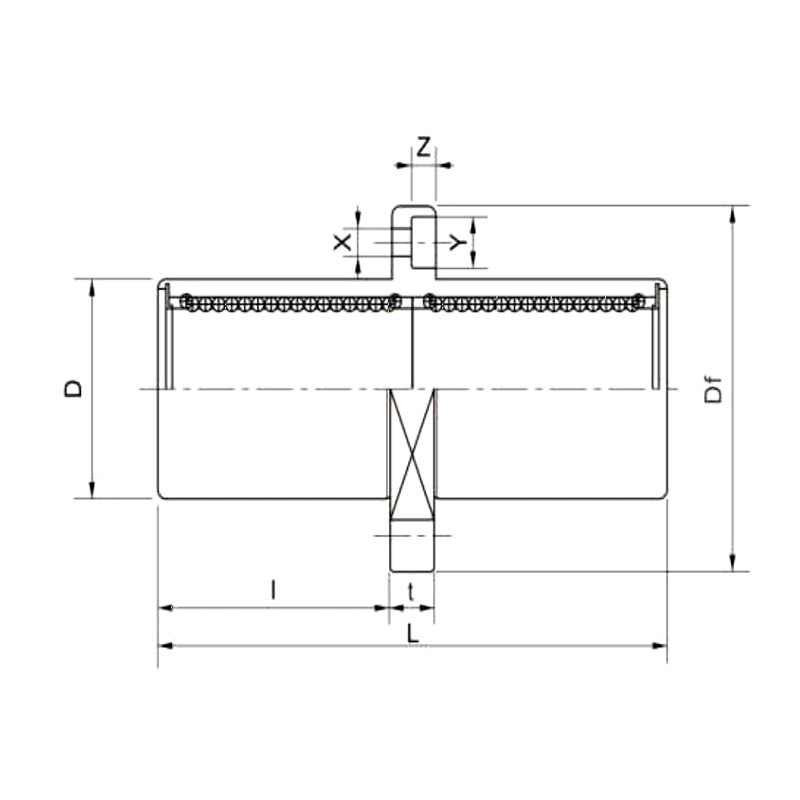

Product Parameters
| Nominal shaft diameter | 12 |
|---|---|
| Extended middle oval flange | SSLMHM12LDD |
| Weight (g) | 81.9 |
| dr(mm) | 12 |
| tolerance | 0/-10 |
| D(mm) | 21 |
| tolerance | 0/-16 |
| L(mm) | 57 |
| tolerance | ±300 |
| I (mm) | 25.5 |
| Df(mm) | 42 |
| W mm | 27 |
| t(mm) | 6 |
| A mm | 32 |
| F(mm) | - |
| X mm | 4.5 |
| Y mm | 7.5 |
| Z mm | 4.1 |
| eccentric | 15 |
| verticality | 15 |
| Dynamic load CN | 813 |
| Static load Co N | 1570 |
