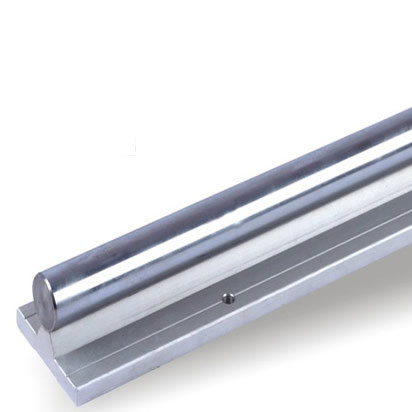

TBS16A
Product Parameters

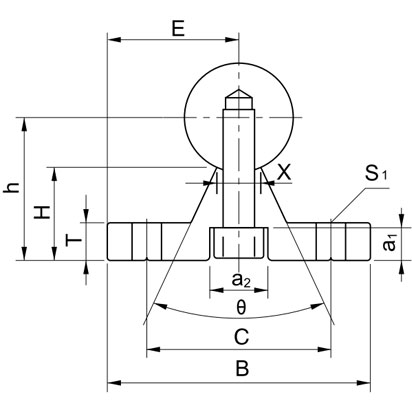

| model | TBS16A |
|---|---|
| Shaft Diameter | 16 |
| E | 25 |
| h | 22 |
| B | 50 |
| H | 14.84 |
| T | 6 |
| X | 8 |
| C | 37 |
| θ | 60° |
| S1 | 5.5 |
| a1 | 6 |
| a2 | 9.5 |
| d1 | 5.5 |
| Weight (g) | 2660 |

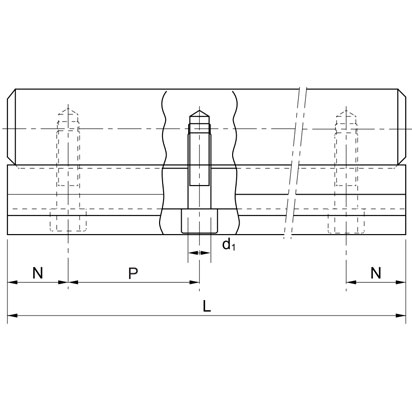

| Standard Length L | 190/340/640/940 |
| N | 20 |
| P | 150 |
| Max.Length | 1390/4000 |
