Linear Bearing Selection, Lubrication and Maintenance: An Engineer’s Guide

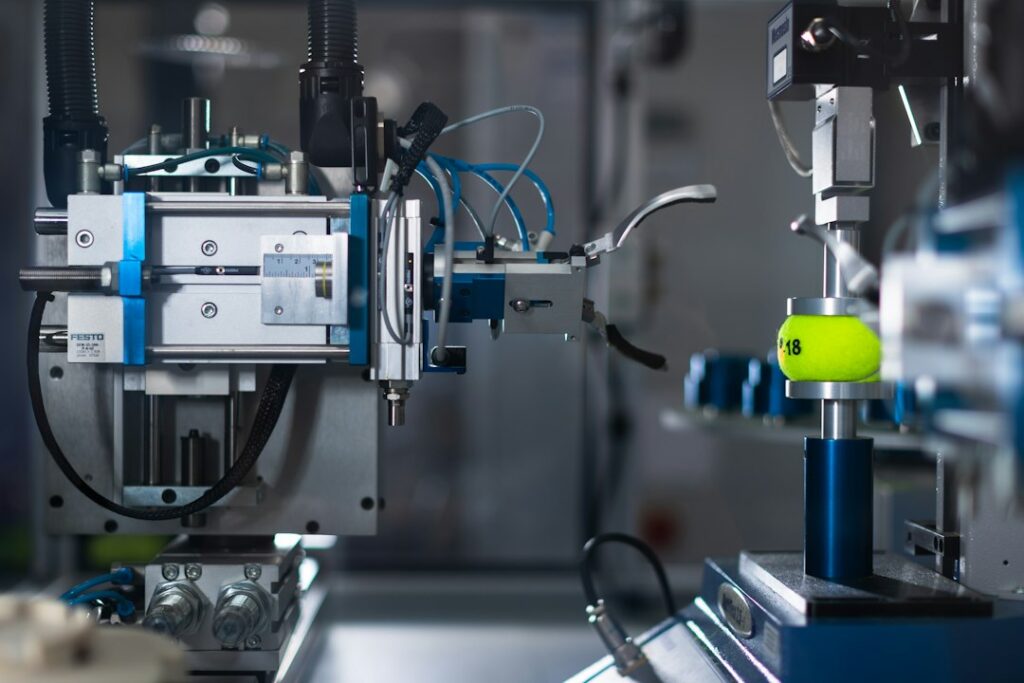

Linear motion systems are the backbone of modern automation, and the Linear bearing is the component that determines whether that motion is smooth, precise, and durable or noisy, loose, and short-lived. Whether you are designing a pick-and-place gantry, a CNC axis, a medical dispensing device, or a packaging line, the choices you make at the specification stage will directly affect the service life of the entire machine.

This guide is written for design engineers and procurement managers who need practical, verifiable engineering information rather than marketing claims. It covers how recirculating-ball linear motion bearings work, how to compare types such as the ball bushing, profile rail guide, and shaft support rail, which parameters matter during linear bearing selection, and how proper linear bearing lubrication and maintenance extend operating life. Where relevant, we reference the ISO and GB standards that govern dimensions, tolerances, and materials so you can validate specifications against recognized documentation.

At FIJ Industrial Technology Limited, our engineering team supports OEM customers with linear motion bearing selection, tolerance matching, and custom configurations for demanding applications. The guidance below reflects the questions we answer most often from buyers in Europe, North America, and Southeast Asia.

How a Linear Bearing Works: Recirculating Ball Fundamentals

A linear bearing is a precision component that enables low-friction linear motion along a shaft or rail. In the most common design—the recirculating ball bushing—hardened steel balls roll between the bearing’s outer sleeve and a ground steel shaft. As each ball reaches the end of its loaded travel zone, it is lifted from the load path, recirculated through a return channel, and reintroduced at the opposite end. This closed-loop geometry converts sliding friction into rolling friction, giving coefficient-of-friction values typically in the 0.001–0.004 range compared with 0.1 or higher for plain sliding contact.

Because the balls contact the shaft at defined points rather than across a full surface, load capacity is governed by the number of load-carrying circuits and the conformity between ball and raceway. Manufacturers rate linear motion bearings with dynamic load capacity C (the load at which 90% of a group achieves one million metres or revolutions of rated life under ideal conditions, per ISO 10285) and a static load capacity C0 for stationary or shock loading. Catalog ranges for standard metric ball bushings span dynamic capacities from roughly 300 N for the smallest bore sizes up to approximately 27,000 N for large-diameter multi-circuit designs; profile rail carriages extend considerably higher.

Key design elements that distinguish quality products include:

• Raceway material: Balls and raceways are typically manufactured from GCr15 high-carbon chromium bearing steel (equivalent to AISI/SAE 52100), through-hardened to HRC 58–64 for consistent contact fatigue resistance.
• Retainer design: Polyamide or steel ball retainers control spacing, reduce noise, and prevent ball-to-ball contact that accelerates wear.
• Seal configuration: Standard double-lip seals retain lubricant and exclude contamination; stainless options use AISI 440C or equivalent for corrosive environments.
• Tolerance classes: Bore and outer-diameter tolerances are produced to normal or precision grades under ISO/GB dimensional standards, enabling matched fits with standard housing bores and shafts without selective assembly.

Main Types of Linear Motion Bearings and Where Each Fits

Selecting the right architecture is the first decision in any linear bearing selection exercise. The three dominant configurations each offer a distinct balance of load capacity, stiffness, accuracy, and cost.

Ball bushings on round shafts. The classic ball bushing rides on a hardened and ground round shaft supported by end blocks or a continuous shaft support rail. This architecture is compact, tolerant of minor misalignment, and economical. Standard metric housings follow the common square-flange, round-flange, and open (for supported-rail clearance) configurations. Metric bores are commonly specified per the metric LM linear bearing range, while inch-based machinery typically uses LMB inch-dimension ball bushings. For longer stroke lengths where shaft deflection becomes a factor, open-type designs such as the extended-length LM designs increase the number of ball circuits, raising load capacity and moment rigidity along the same shaft diameter.

Profile rail guides. A profile rail guide replaces the round shaft with a machined rail of Gothic-arch or circular-arc raceways and a carriage with four load circuits. This geometry delivers substantially higher moment stiffness and precision, making profile rails the default choice for CNC machine tools, robots, and high-accuracy measuring equipment. The trade-off is cost, sensitivity to rail straightness and mounting-surface flatness, and more demanding installation practice.

Shaft supports and system components. A shaft support rail or shaft support block provides the rigid, continuously supported foundation that round-shaft systems require. Unsupported shafts act as beams: under their own weight and applied loads they deflect, concentrating load on the endmost balls and destroying accuracy. Properly spaced ST-type shaft support blocks reduce span deflection dramatically and are essential in strokes exceeding roughly 300–500 mm, depending on shaft diameter and load.

A practical rule of thumb: choose ball bushings when compactness, tolerance to misalignment, and cost dominate; choose profile rail guides when moment stiffness, sub-0.01 mm repeatability, or high dynamic rigidity dominate.

Linear Bearing Selection: The Parameters That Actually Matter

Effective linear bearing selection is a load-path and life calculation, not a catalogue comparison. Work through the following sequence before specifying any part number.

• Load magnitude and direction. Resolve applied forces into the bearing’s coordinate system. Most ball bushings have three ball circuits carrying primary radial load and reduced capacity in off-axis directions; catalogues publish multi-directional load tables. Apply a safety factor of 2–4 on the dynamic rating for normal industrial duty, higher for shock or vibration.
• Life calculation. Use the standard life equation L = (C/P)³ × 10⁵ m (or the catalogue equivalent), where P is the equivalent dynamic load. Cube-law sensitivity means a 25% overload cuts theoretical life by roughly half—verify P honestly, including inertia loads from acceleration.
• Speed and acceleration. Recirculating-ball units commonly operate at 2–5 m/s with accelerations of 20–50 m/s²; check the manufacturer’s vmax limits and confirm that ball cage design suits your duty cycle.
• Accuracy grade. Standard-grade housings suit general automation; precision-ground assemblies are needed where positioning repeatability below roughly 0.01 mm is required, such as in optical or semiconductor equipment.
• Shaft hardness and tolerance. Matched shafts must be hardened to HRC 58–64 with surface roughness around Ra 0.2–0.4 µm and dimensional tolerance g6/h6 for precision fits. A soft or undersized shaft is the single most common cause of premature ball bushing failure.
• Environment. Specify stainless steel, sealed units, or bellows covers for washdown, dust, or corrosive atmospheres. Contamination, not fatigue, ends most linear bearings in real plants.

Pair every selection with the corresponding shaft support rail or support block, and verify the assembled sy

stem’s straightness across the full travel. FIJ engineers routinely review customer load diagrams at this stage—sharing your force vectors and duty cycle typically reveals whether a standard metric design or a higher-capacity multi-circuit unit is the better fit.

Linear Bearing Lubrication and Maintenance Best Practices

Proper linear bearing lubrication is the difference between rated life and real life. Recirculating-ball units depend on a continuous elastohydrodynamic film between ball and raceway; without it, boundary contact generates rapid micropitting.

Lubricant selection. Lithium-soap NLGI 2 grease with a mineral or synthetic base oil of ISO VG 68–220 viscosity is the general-purpose default for industrial temperatures. Low-temperature or high-speed applications call for lower-viscosity synthetic oils. Food, cleanroom, and vacuum environments require H1-registered greases or dry-film alternatives—never substitute generic grease in regulated industries.

Relubrication intervals. Relubrication frequency depends on speed, load, orientation, and environment; a common starting point for grease-lubricated units in clean conditions is every 100 km of travel or six months, whichever comes first. Vertical or dusty installations need intervals shortened by 30–50%. Where access is limited, specify units with grease nipples or integrate a centralised lubrication circuit.

A disciplined linear bearing maintenance programme should include:

• Periodic visual inspection for seal damage, raceway brinelling marks, or discoloration indicating overheating
• Monitoring of running noise and resistance—an increase in either signals lubricant depletion or contamination
• Cleaning shafts and rails before relubrication; wipe with lint-free cloths and approved solvents only
• Verification of mounting-bolt torque and support-block alignment at every scheduled service
• Replacement of seals and wipers whenever the carriage is disassembled, never reuse

Profile rail guides additionally benefit from scraper or metal-cap options in abrasive environments, and both architectures should be specified with bellows covers where machining chips or fine powders are present.

Standards, Materials, and Quality Assurance for Buyers

Procurement teams evaluating linear motion bearing suppliers should anchor specifications in recognized standards rather than supplier-specific terminology. The relevant framework includes ISO 10285 for linear motion rolling bearings (dimensions and tolerances), GB/T 16940 as the corresponding Chinese national standard, ISO 683-17 for bearing-steel material requirements, and ISO 9001 for the supplier’s quality management system.

Material traceability is non-negotiable for critical applications. Ask suppliers to certify that balls and raceways are produced from GCr15 or equivalent chromium steel, hardened to HRC 58–64, with hardness verification reports per heat or batch. For stainless executions, confirm whether AISI 440C or AISI 304/316 housings are used and understand the load-capacity trade-off: 440C approaches standard steel capacity, while austenitic housings with ceramic or stainless balls suit corrosion resistance at reduced ratings.

Tolerance verification matters equally. Bore diameter, outer diameter, width, and radial clearance should be gauged against the declared class, with precision-grade units typically held to single-digit-micron bore tolerances. Reputable manufacturers perform 100% dimensional screening on critical features and batch-test hardness, metallography, and salt-spray performance where coatings are applied. FIJ Industrial Technology Limited operates under an ISO 9001 certified quality management system and supplies documented inspection reports with export shipments to Europe, North America, and Southeast Asia—request these documents explicitly in your purchase order, and treat suppliers who cannot provide them as higher-risk regardless of price.

Frequently Asked Questions

Q: How do I choose between a ball bushing and a profile rail guide?
A: Base the decision on moment load and stiffness requirements. Ball bushings on a supported shaft are compact, forgiving of misalignment, and cost-effective for moderate loads and strokes. Profile rail guides are preferred where you need high moment stiffness, very high repeatability, or combined multi-directional loads. Run the life calculation for both; if the profile rail is only marginally better, the ball bushing is usually the more economical and forgiving choice.

Q: Are metric LM and inch LMB bearings interchangeable with other brands?
A: Dimensionally, standard metric and inch designs follow common dimensional standards (ISO 10285 / GB/T 16940 and the de facto inch standards), so bores, outside diameters, and lengths are typically interchangeable across reputable manufacturers. However, verify radial clearance, seal design, and load ratings before substitution—catalogue dynamic capacities can differ even for identical envelope dimensions.

Q: What maintenance does a linear bearing actually require in continuous operation?
A: At minimum: keep shafts and rails clean, relubricate per the duty-cycle interval (roughly every 100 km of travel or six months in clean conditions), and monitor for noise or resistance changes. In contaminated environments, add wiper inspection and shorten relubrication intervals by 30–50%. Replace the unit if you observe brinelling, spalling, or persistent roughness after relubrication.

Q: Which standards should I reference in my technical specification?
A: Reference ISO 10285 (or GB/T 16940) for dimensions and tolerances, ISO 683-17 for bearing steel material, and ISO 9001 for the supplier’s quality system. If your machinery falls under CE-marked equipment, EN ISO 12100 risk assessment will also influence guarding and lubricant selection (e.g., food-grade grease requirements).

Every application has constraints that standard catalogues cannot fully address—non-standard bore and length combinations, special clearances for thermal expansion, stainless executions for washdown lines, or matched-shaft assemblies supplied as tested sets. FIJ Industrial Technology Limited offers engineering support for these custom requirements, from load-path analysis and tolerance matching through to prototype validation and documentation packages for export approvals. With more than 15 years of manufacturing and export experience, our team works directly with your design engineers to deliver linear motion solutions that fit the application—not the other way around. Contact us at No. 15, Fuxing Longsheng Plaza, Guangxian Road, Wuqing District, Tianjin, China, to discuss your project.
